Cantilever single twisting machine
Professional Grade Cantilever Single Twisting Machine with 2 Year Warranty!
The quality of our Cantilever Single Twisting Machine is second to none.
Merits:
1.our Cantilever Single Twisting Machine can help you save 40% cost at the beginning?Products are widely used in IT communications, aerospace, military, medical, locomotives, automobiles, robots, ships, 5G cloud databases and other fields.
2.Cantilever Single Twisting Machine applied to the twisting of above 7pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and twisting for core wires.
3.Choose between 630XB to 1250XB Cantilever Single Twisting Machine can do conductor compress stranding and cores laying up from 16mm2 to 4x25.0mm2 .
4.Cantilever Single Twisting Machine use cantilever structure, small rotatory inertia,high and stable rotation, thus get the stable quality products.
5.Cantilever Single Twisting Machine take-up box reciprocate,lead to the bunching wire is arranged precisely in the take-up bobbin.
6.Cantilever Single Twisting Machine use computer control the pitch,no capstan,no dynamic plate, assure the uniformity tension of cable, shorten the path length
7.Increasing the diameter of veer wheel to decrease the wire bend degree, assure the quality of finished wire.
8.Compared with the traditional cable-laying machine,Cantilever single twisting machine can avoid the rod cracked and other unsafe factors when machine is rotating in high speed.
|
model |
630XB |
800XB |
1000XB |
1250XB |
|
Usage |

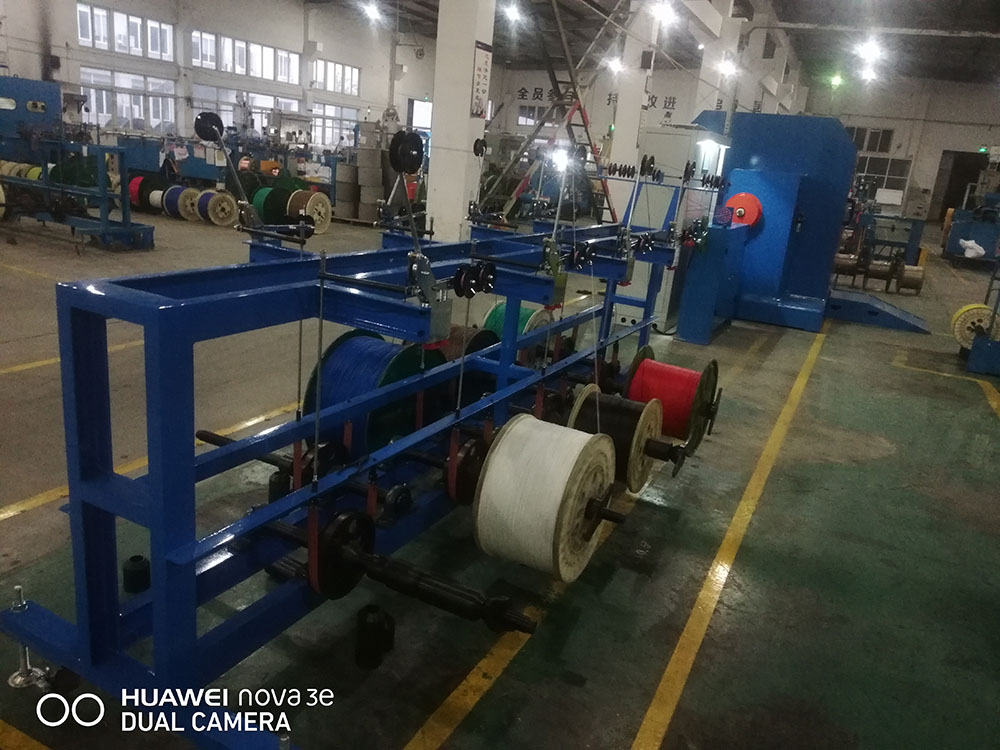

Apply for cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping and compress conductor stranding.The entire machine is consists of pay-off rack,central taping,side pay-off rack for the central coil tapping set,single twist(cable-laying)machine and electrical control cabinet. |
|||
|
Applicable Dia(mm) |
φ0.6-3.0 |
φ1.5-4.0 |
φ1.5-φ5.0 |
φ2.0-φ6.0 |
|
Max Twist Dia(mm) |
φ10 |
φ12 |
φ20 |
φ25 |
|
Pitch(mm) |
40-200 |
45-260 |
50-300 |
50-350 |
|
Direction of lay |
Free option to S Z |
|||
|
Take-up size |
φ630 |
φ800 |
φ1000 |
φ1250 |
|
Rotating speed |
800 |
600 |
500 |
450 |
|
Traverse type |
According to bobbin rotate speed and reciprocating motion to stepless adjust |
|||
|
Take up tension |
Pneumatic tension automatic regulate |
|||
|
Brake mode |
Pneumatic booster brake |
|||
|
Taping type |
Central taping or side along taping |
|||
|
Pitch change |
Computer pitch |
|||
9.Can fit 380V to 440V,50HZ to 60HZ, color can be customize
3 phase 4 wires,R,S,T,PEN
3 phase 5 wires,R,S,T,PE,N
Need help to provide an solution for conductor compress stranding or core twisting?
Contact the Cantilever Single Twisting Machine experts now! Tel: +86-15216844360 sales@cablemach.com
Trade terms:T/T;L/C.
Package:
1) Simple water-prof package 2) Pallet package 3) Pallet with Vacuum package 4) Wooden box package
