Multi-Wire Taking-up Annealing Tinning Line
Professional Grade Multi-Wire Taking-up Annealing Tinning Line with 2 Year Warranty!
The quality of our Multi-Wire Taking-up Annealing Tinning Line is second to none.
Multi-Wire Taking-up Annealing Tinning Line apply for 0.15-0.64mm conductor annealing and tinning . Products are widely used in IT communications, aerospace, military, medical, locomotives, automobiles,
robots, ships, 5G cloud databases and other fields
Merits:
1. Multi-Wire Taking-up Annealing Tinning Line can replaces 630 multi-wire drawing machine take-up, which is easy to operate and reduces the labor intensity of the operators;
2. Multi-Wire Taking-up Annealing Tinning Line is equipped with wire break detection and annealing furnace tube automatic alcohol protection function, corresponding to the wire take-up reel breaks, automatically stop and brake, does not affect other wire take-up heads;
3. The automatic alcohol device at the inlet end of the annealing furnace can The copper wire is protected by oxidation, avoiding the oxidation of the wire during the shutdown;
4. Multi-Wire Taking-up Annealing Tinning Line wiring adopts servo motor + precision wire rod wiring, the speed of the wiring is accelerated and decelerated synchronously with the take-up, and the wiring is neat and flat;
5. (Optional) Internet of Things function, multiple device information can be integrated on multiple mobile phones or computers, at any time to check the Multi-Wire Taking-up Annealing Tinning Line operation, such as temperature settings, power consumption, voltage and current, line speed, power factor, etc., Realize refined management and reach industry-leading level.

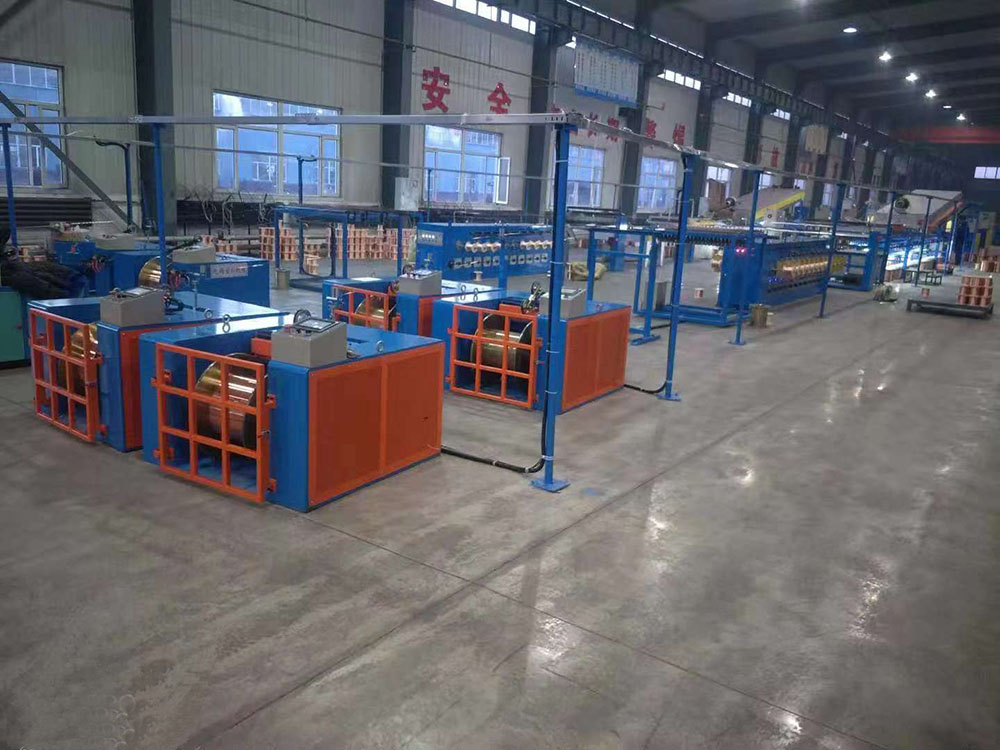

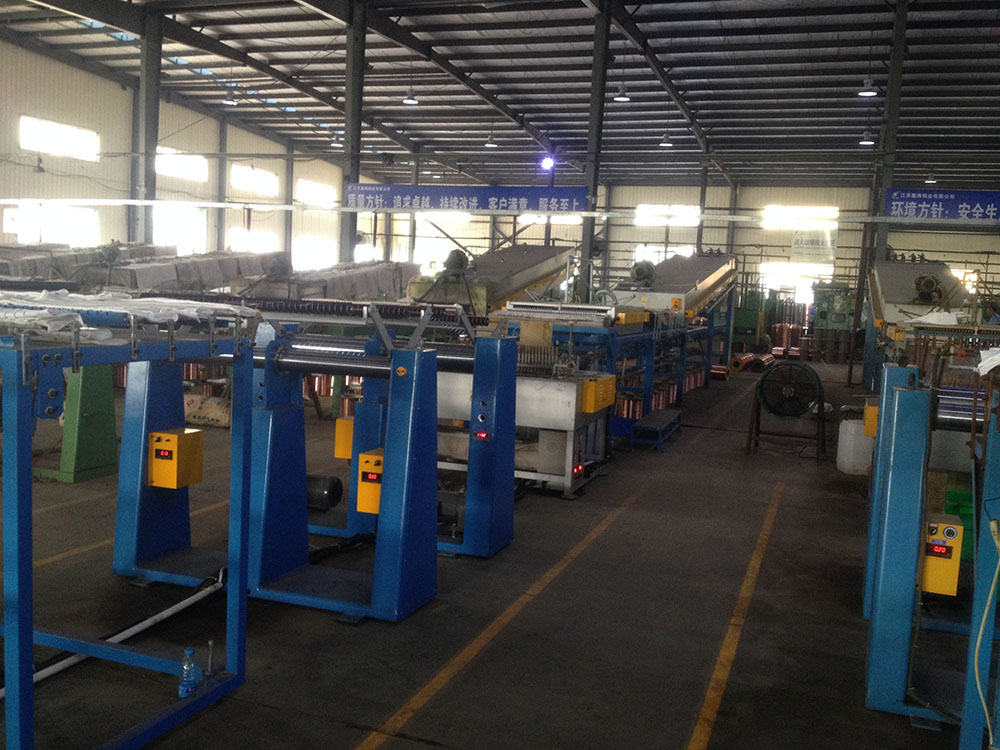

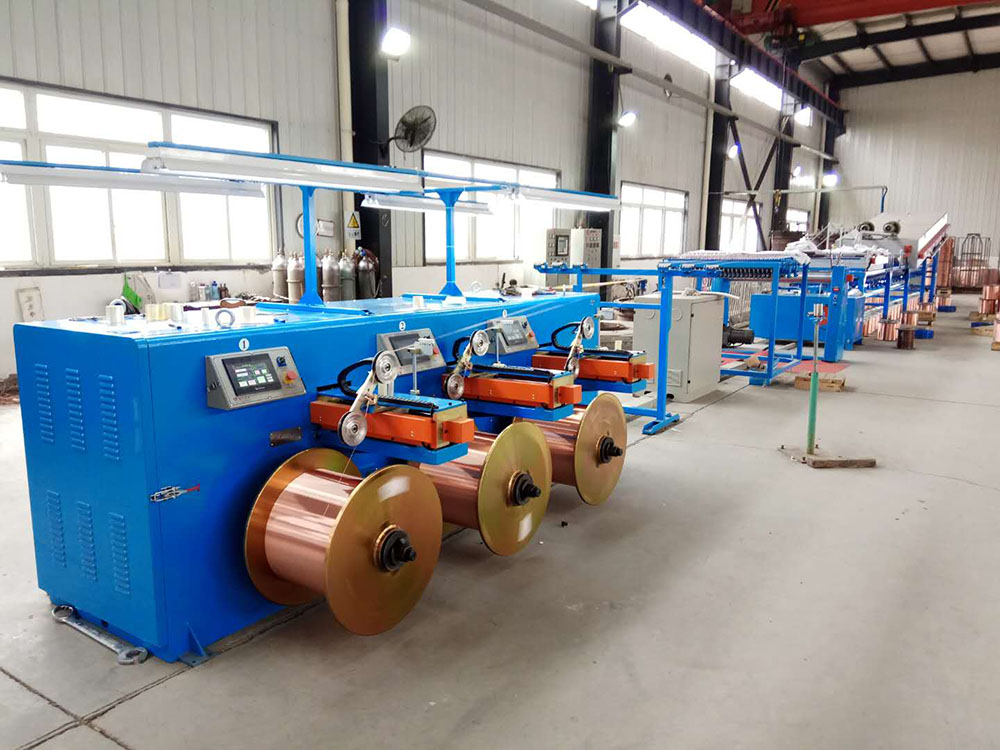

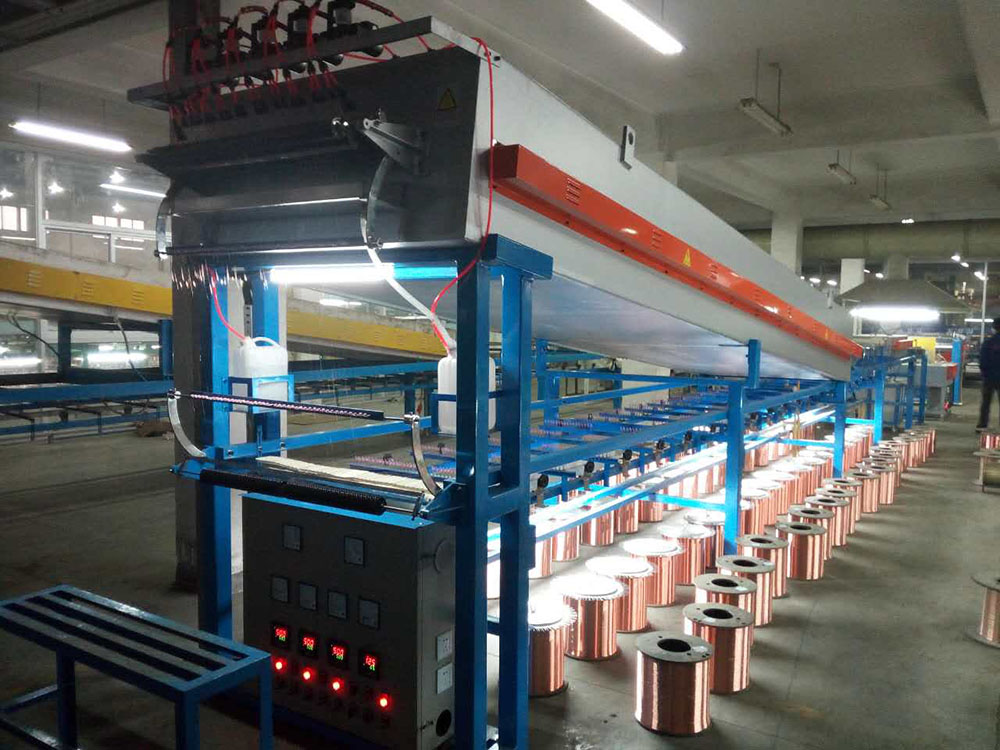

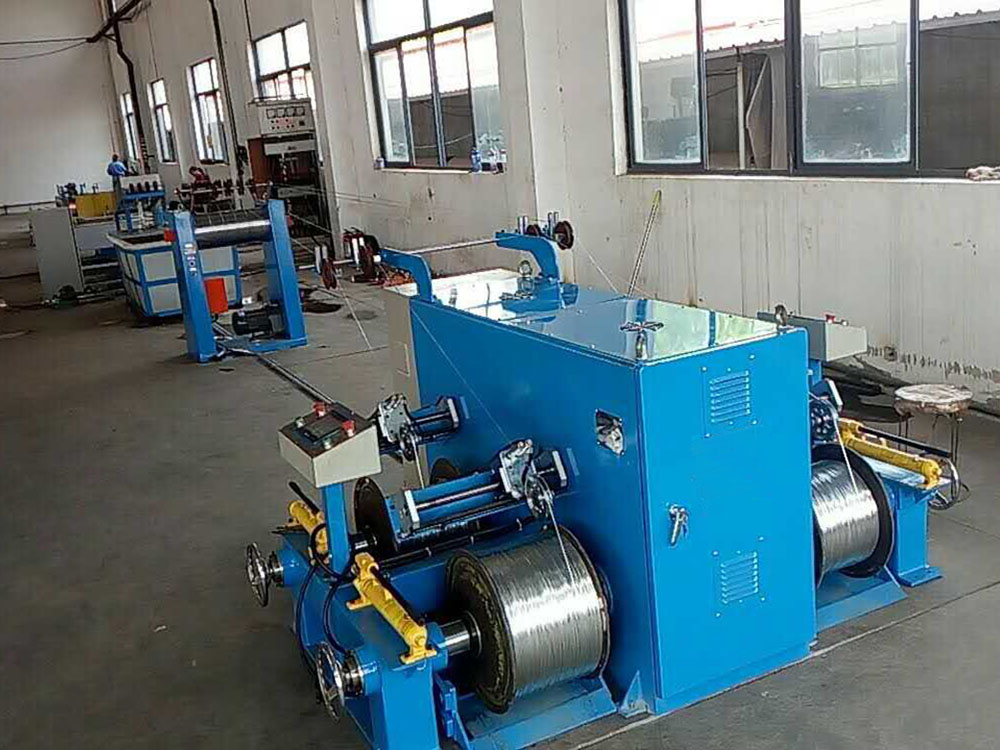

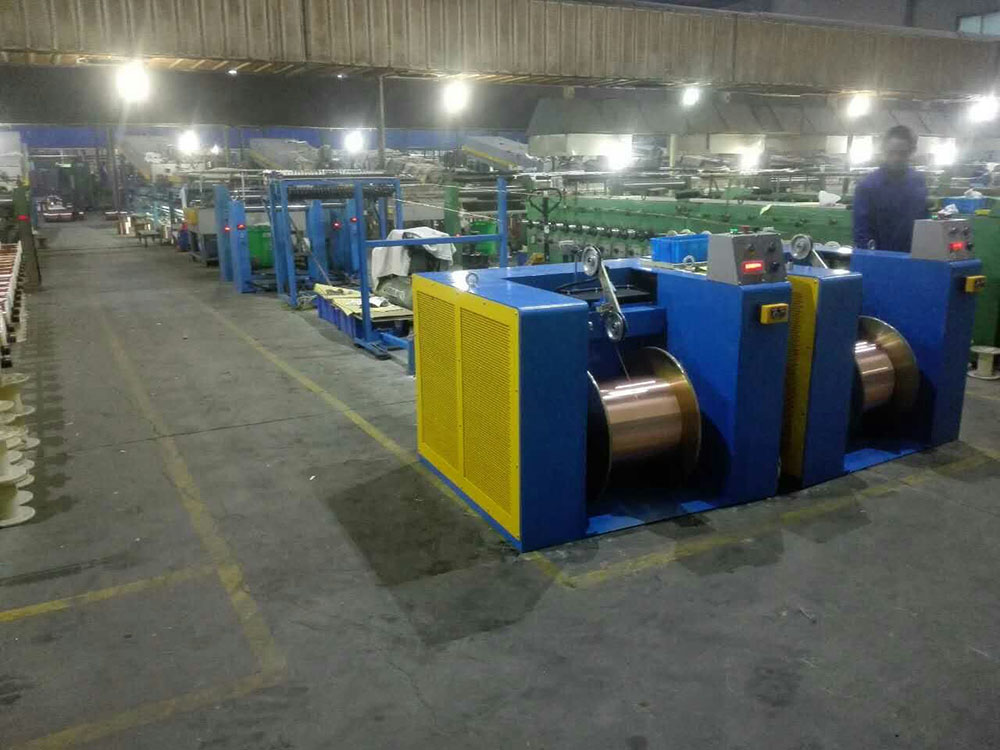

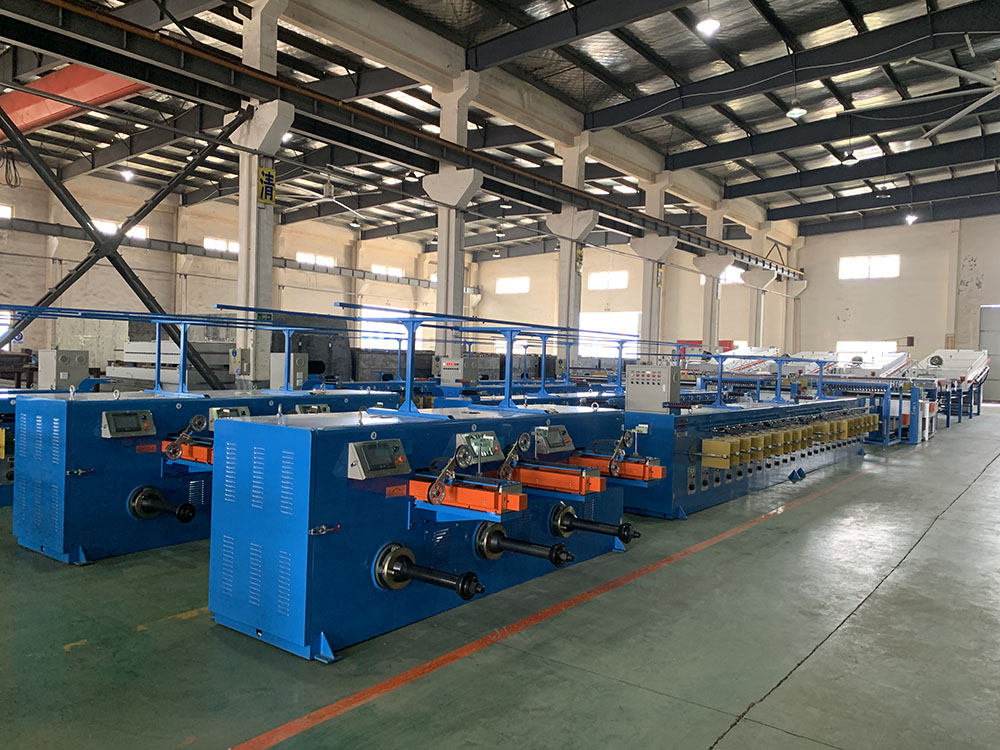

Some Cases:
4.Can fit 380V to 440V,50HZ to 60HZ, color can be customize
3 phase 4 wires,R,S,T,PEN
3 phase 5 wires,R,S,T,PE,N
|
Equipment model |
T42/630 |
T48/630 |
T64/630 |
T80/630 |
|
Application |
Mainly apply for round copper wires annealing and tinning , collected on the 630 iron plate at the same time, instead of multi-wire drawing machine take-up |
Mainly apply for round copper wires annealing , collected on the 630 iron plate at the same time, instead of multi-wire drawing machine take-up |
||
|
inlet wire dia |
φ0.15?φ0.64mm |
|||
|
max inlet wire |
42 |
48 |
64 |
80 |
|
linear speed |
max:260m/min |
|||
|
pay-off type |
brush pay off or far end pay off |
|||
|
pay-off spool |
DIN 300mm |
|||
|
annealing length |
6m / 7.5m |
|||
|
annealing type |
tube annealing |
|||
|
annealing protection type |
water seal protection+Alcohol or steam protection |
|||
|
total power |
105KW |
113KW |
123KW |
142KW |
|
drying device |
high pressure worm fan+blower |
|||
|
oven length |
1.5m |
|||
|
hauling |
active hauling device controller |
|||
|
tinned type |
hot dip |
- |
||
|
take up control |
inverter control torque motor take up |
|||
|
take up operation mode |
touch screen operation |
|||
|
take up bobbin |
2?6pcs 630bobbin take up(can according to customer's requirement) |
|||
|
traverse control type |
Servo motor + precious screw traverse |
|||
|
Dimension(mm) |
26000L*2200W*2300H |
27000L*2200W*2300H |
27500L*2200W*2300H |
32000L*2700W*2300H |
Need help to provide an solution for conductor annealing and tinning processing?
Contact the Multi-Wire Taking-up Annealing Tinning Line experts now! Tel: +86-15216844360 sales@cablemach.com
Trade terms: T/T,L/C
Package:
1.Simple water-prof package 2.Pallet package 3.Pallet with Vacuum package 4.Wooden box package
