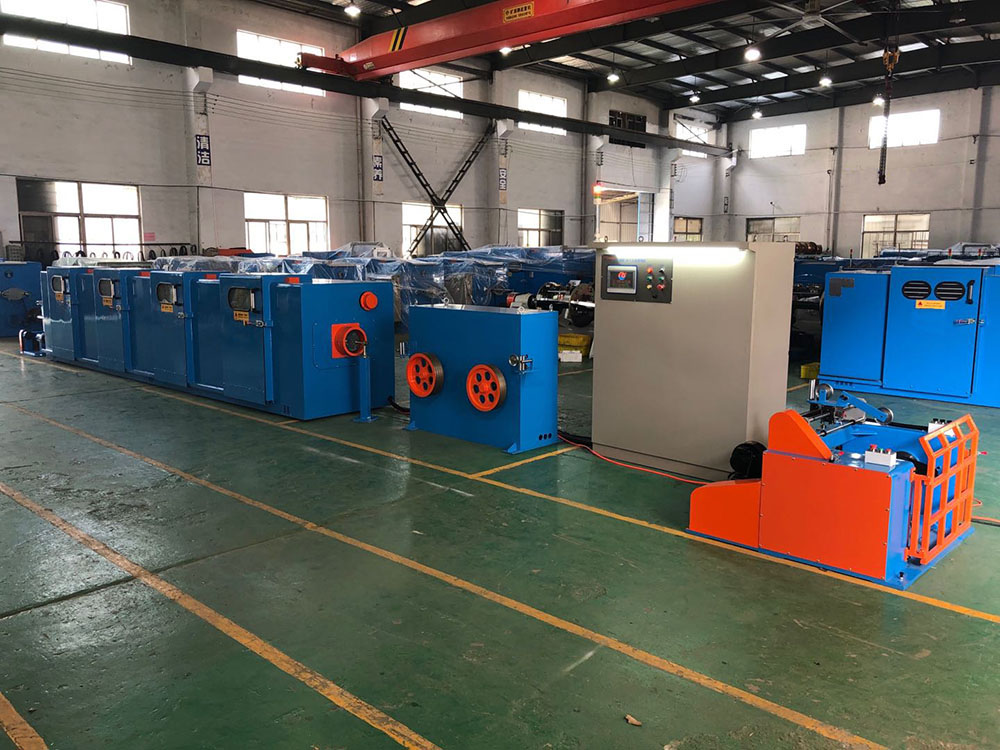

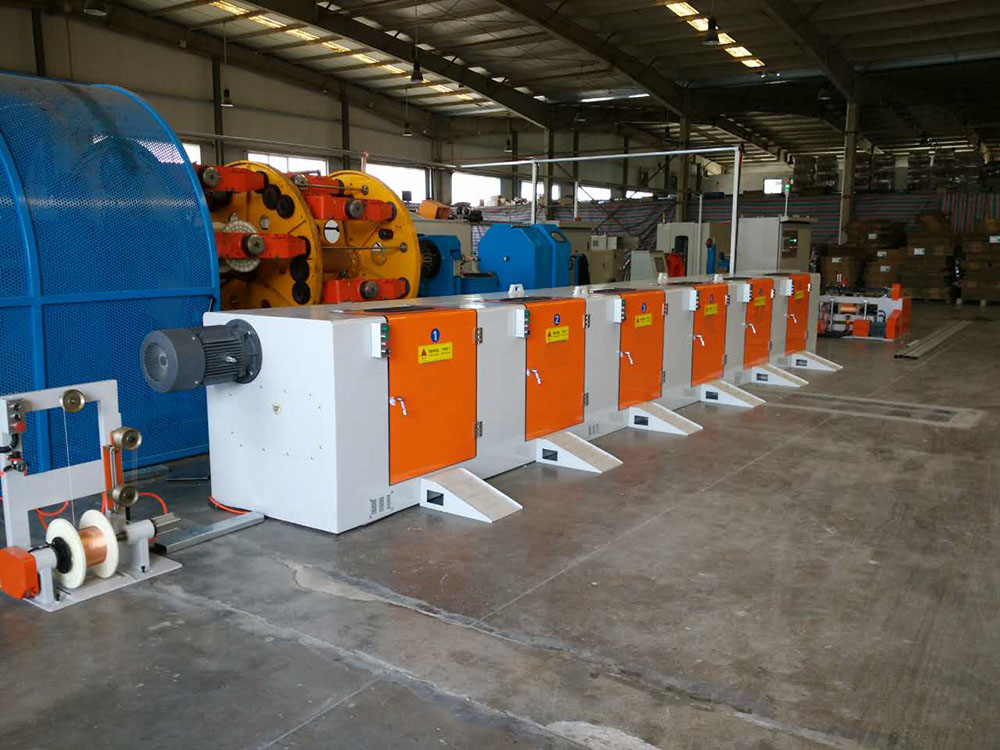

Non-twist bunching machine
Professional Grade Non-twist bunching machine with 2 Year Warranty!
The quality of our Non-twist bunching machine is second to none.
Merits:
1.our Non-twist bunching machine can help you save 40% cost at the beginning.
2.Non-twist bunching machine applied to the twisting of above 7pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and twisting for core wires
3.Choose between 300E(6+1) to 630E(3+1) Non-twist bunching machine can do conductor stranding and cores laying up from 16mm2 to 4x25.0mm2 .products are widely used in IT communications, aerospace, military, medical, locomotives,automobiles, robots, ships, 5G cloud databases and other fields
4.Non-twist bunching machine is applied for high frequency data cable no torsion twist, fit for 2-7pcs of core wire cabling or 2-4pcs core wire cabling and with filling material, and achieve the bundling function(when wrapping tape is break the machine will stop automatically).
5.Non-twist bunching machine is magnetic stable tension pay off, this cabling type, make the insulated core wire interlace uniformly, avoid the non-uniform twist force, thus make the finished wire with the uniform, precision pitch. Highly improved the quality and stability of the cable wires.
|
Model |
300E(6+1) |
500E(2+1) |
500E(3+1) |
630E(2+1) |
630E(3+1) |
|
Core wire dia(mm) |
Φ0.8-φ1.5 |
φ1.5-φ3.0 |
φ1.5-φ3.0 |
φ2.0-φ5.0 |
φ2.0-φ5.0 |
|
Twisted dia(mm) |
Φ1.6-φ4.5 |
Φ3.0-φ6.5 |
Φ3.0-φ7.2 |
φ4.0-φ11 |
φ4.0-φ12 |
|
Pitch(mm) |
10-60 |
10-100 |
20-160 |
||
|
Direction of Lay |
Free option to S Z |
||||
|
Max Speed(rpm) |
1200 |
1500 |
1200 |
1200 |
1000 |
|
Tension control method |
(magnetic tension control, can be adjust outside machine) |
active pay-off |
|||
|
pay-off size |
Φ300 |
φ500 |
Φ630 |
||
|
taping machine |
(centre wrapping, when wrapping tape is break the machine will stop automatically) |
||||
|
taping size |
dia φ300*φ51*width10?40mm |
||||
|
hauling wheel dia(mm) |
Φ240 |
φ410 |
φ510 |
||
|
take-up size |
Φ500?Φ630 |
φ630?Φ800 |
Φ800?Φ1250 |
||
|
Traversing Method |
Precious traverse or screw type polish rod traverse,traverse width and row space are adjustable |
||||
|
lifting type |
Electrical Lifting |
||||
Our Non-twist bunching machine are CE approved!
Can fit 380V to 440V,50HZ to 60HZ, color can be customize
3 phase 4 wires,R,S,T,PEN
3 phase 5 wires,R,S,T,PE,N
Need help to provide an solution for conductor stranding and cores twisting?
Contact the Non-twist bunching machine experts now! Tel: +86-15216844360 sales@cablemach.com
Trade terms:T/T;L/C.
Package:
1.Simple water-prof package 2.Pallet package 3.Pallet with Vacuum package 4.Wooden box package
