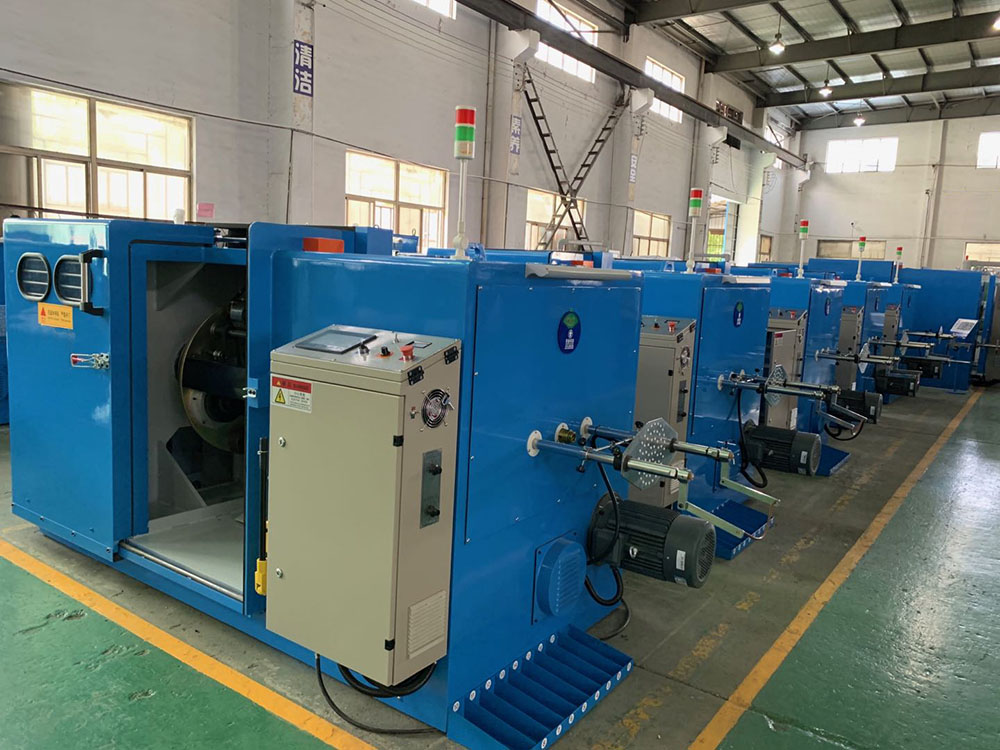

Professional Grade 650C-1 Double Twist Bunching Machine with 1 Year Warranty!

The quality of our 650C-1 Double Twist Bunching Machine is second to none.Can do conductor stranding from 0.3mm2 to 4.0mm2 .products are widely used in IT communications, aerospace, military, locomotives, automobiles, robots, ships, 5G cloud databases and other fields.

650C-1 Double Twist Bunching Machine apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires.

Merits:

1.650C-1 Double Twist Bunching Machine is High speed, constant tension from empty reel to full reel, excellent quality of stranded wire, which can be used for stranding instead of stranding to meet customer's requirements for stranding of small cross-sectional area. The whole machine is driven by a synchronous belt, and only the take-up wheel needs to be replaced when changing the lay length ,easy to use

2.IoT (optional): 650C-1 Double Twist Bunching Machine information of multiple devices can be integrated on multiple mobile phones or computers, and the operation of the machine can be checked at any time, such as speed, stranding specifications, line speed, output, equipment maintenance, etc., and can be online at the same time Diagnosis and remote maintenance, etc., to achieve refined management and reduce production and maintenance costs.

3.650C-1 Double Twist Bunching Machine is a new product developed by our company, with high speed, constant tension from empty to full reel, and excellent stranding quality. This machine can be equipped with a pressure sensor to monitor the tension of the take-up online, and feedback and correct the tension value at the same time;

4.Internal precision wiring of the stranding machine (optional): 650C-1 Double Twist Bunching Machine can use stepper motor + precision ball screw wiring, internal and external PLC data sharing through wireless communication module, collection of wiring data and take-up shaft speed, through PLC precise calculation, guarantee The wiring precision, and the wiring width and row spacing are set on the touch screen, no need to stop the adjustment, reduce downtime and improve production efficiency.

5.Intelligent constant tension control system (optional): through the high-precision tension closed-loop control system,650C-1 Double Twist Bunching Machine tension of the internal take-up is constant from the empty reel to the full reel; solve the problem of the winding The diameter increases, the half-reel start is difficult, and the tension tracking is not timely, causing quality problems such as copper wire stretching; at the same time, the take-up tension is automatically adjusted according to the set tension value.

6.Automatic oil supply system: 650C-1 Double Twist Bunching Machine program is set to automatically refuel at a fixed time, which is not affected by the environment, and can be used for regular and quantitative oil, to prevent bearing damage caused by no timing refueling; to prevent lubricant deterioration, from the oil pump to the refueling point, the lubricant will not Contact with outside air to prevent deterioration of lubricant and mixing of debris

.

This 650C-1 Double Twist Bunching Machine is CE approved

Click here to download the specifications of  four type 650C-1 Double Twist Bunching Machine .

Need help to provide an solution for conductor stranding and cores twisting?

Contact the 650C-1 Double Twist Bunching Machine experts now! Tel: +86-15216844360 sales@cablemach.com

7.Can fit 380V to 440V,50HZ to 60HZ, color can be customize

  3 phase 4 wires,R,S,T,PEN

  3 phase 5 wires,R,S,T,PE,N

8.Type:

650C-1 Double Twist Bunching Machine for single wire 0.12-0.45mm stranding,cross section 0.3-2.5mm2,pitch range 11.6-100mm 2600RPM

650C-1 Double Twist Bunching Machine for single wire 0.15-0.52mm stranding,cross section 0.3-2.5mm2,pitch range 11.6-100mm 2500RPM

650C-1 Double Twist Bunching Machine for single wire 0.12-0.45mm stranding,cross section 0.3-2.5mm2,pitch range 11.6-67mm 2400RPM

650C-1 Double Twist Bunching Machine for single wire 0.15-0.64mm stranding,cross section 0.5-4.0mm2,pitch range 11.6-100mm 2300RPM

9.Some Option:

Set-up:

China standard: Veinview HMI + Inovance PLC & Invertor + Siemens Motor

Siemens standard: Siemens HMI & PLC & Invertor+Siemens Motor

Spindle lubrication:manual lubrication / PLC lubricator

Power Cabinet: Embedded type / plug in type / Stand alone type / Synoptic panel type

Spool Lift: manual hydraulic pump / electrical hydraulic pump

Take-up tension type:Magnetic powder clutch / Hollow shaft clutch / Hysteresis clutch

IOT remote system and temperature sensor

Pay terms:T/T;L/C.

Package:

1)Simple water-prof package 2)Pallet package 3)Pallet with Vacuum package 4)Wooden box package
