Type A Double Twist Bunching Machine
Professional Grade Type A Double Twist Bunching Machine with 2 Year Warranty!
The quality of our Type A Double Twist Bunching Machine is second to none.
Our Type A Double Twist Bunching Machine can do conductor stranding from 0.035mm2 to 16.0mm2 .products are widely used in IT communications, aerospace, military, medical, locomotives, automobiles, robots, ships, 5G cloud databases and other fields.
Merits:
Type A Double Twist Bunching Machine can help you save 40% cost at the beginning.applied to the twisting of above 7pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and double twisting for core wires.
Range:
1. 300A Double Twist Bunching Machine for0.035mm2-0.4mm2

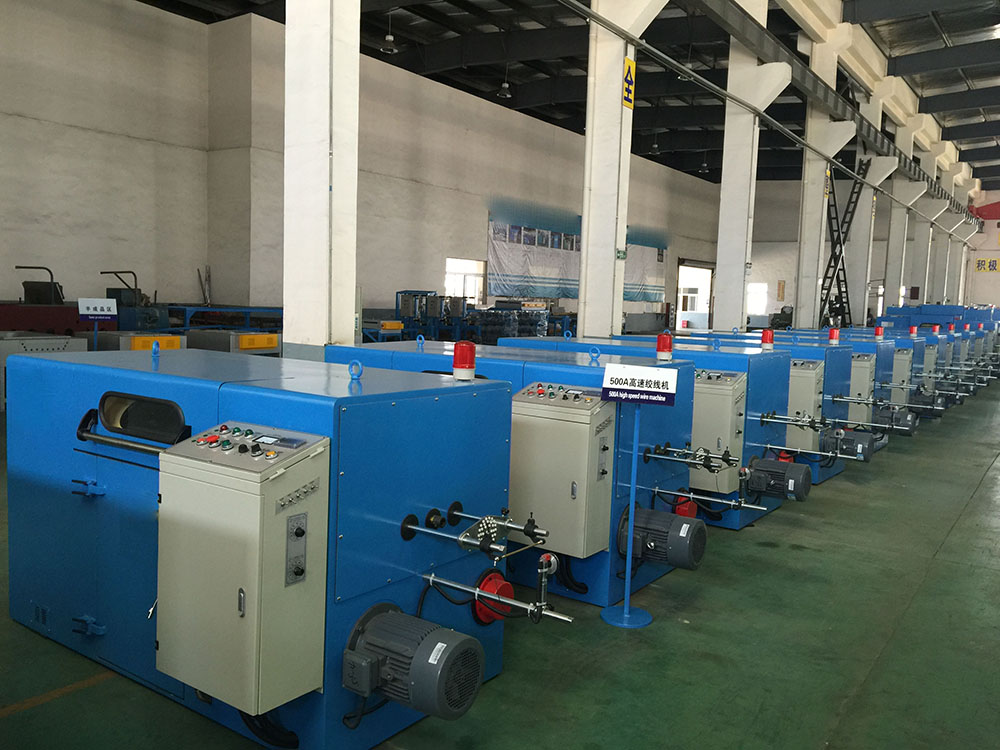

2. 500A Double Twist Bunching Machine for0.05mm2-2.5mm2

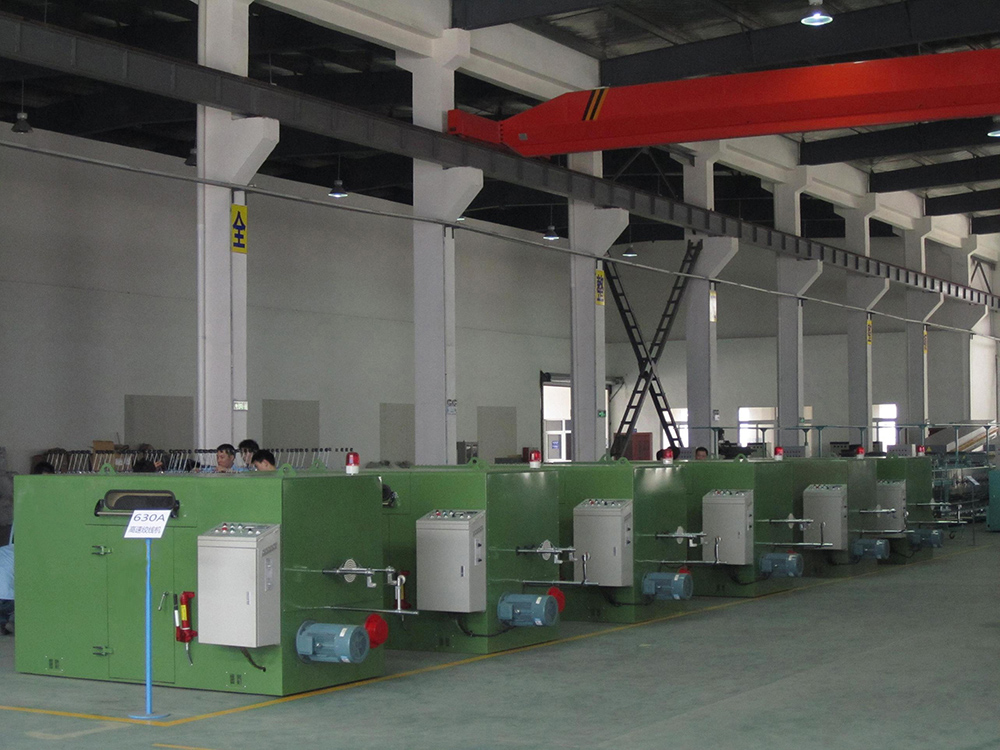

3. 630A Double Twist Bunching Machine for 0.5mm2-6.0mm2

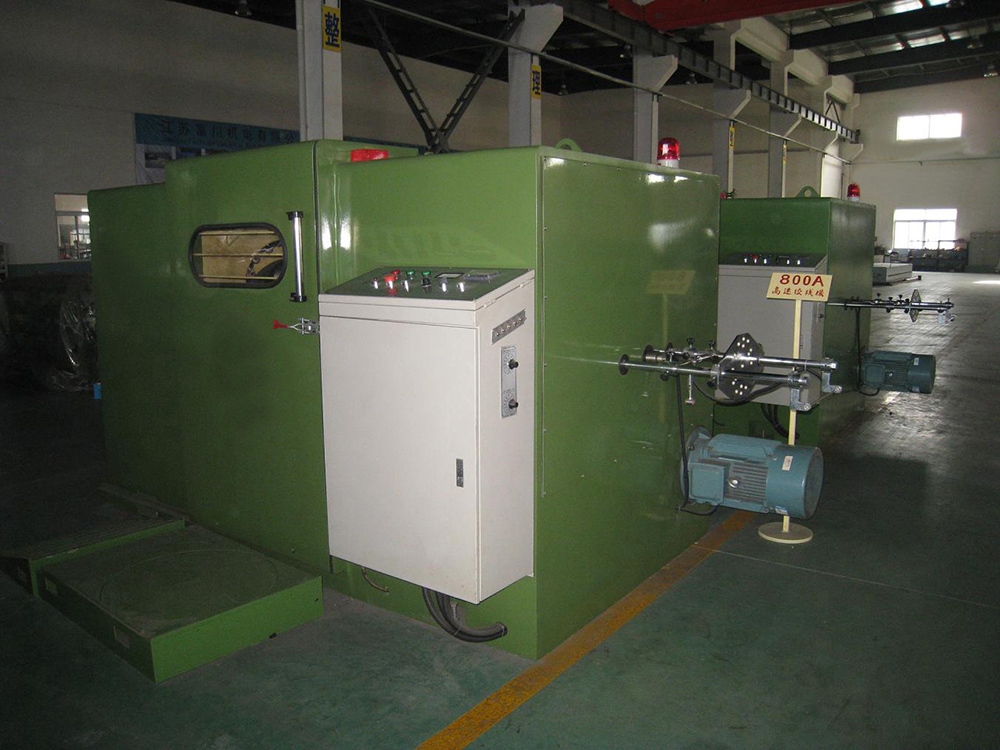

4. 800A Double Twist Bunching Machine for 1.0mm2-16.0mm2
Need help to provide an solution for conductor stranding and cores twisting?
Contact the Type A Double Twist Bunching Machine experts now! Tel: +86-15216844360 sales@cablemach.com
Can fit 380V to 440V,50HZ to 60HZ, color can be customize
3 phase 4 wires,R,S,T,PEN
3 phase 5 wires,R,S,T,PE,N
|
model |
||||
|
usage |
applied to the twisting of above 7pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and double twisting for core wires. |
|||
|
single wire dia(mm) |
φ0.08-φ0.28 |
φ0.10-φ0.64 |
φ0.15-φ1.04 |
φ0.2-φ1.7 |
|
Cross section(mm2) |
0.035-0.4 |
0.05-2.5 |
0.5-6 |
1.0-16 |
|
core wire dia(mm) |
φ0.25-φ0.8 |
φ0.75-φ1.5 |
φ1.0?-3.0 |
φ1.0?-4.0 |
|
Twisted wire dia(mm) |
φ0.5-φ1.6 |
φ1.5-φ3.0 |
φ2.0-φ6.0 |
φ2.0?-8.0 |
|
gear wheel pitch(mm) |
4.5-17.5 |
5.82-53.73 |
11.48-100 |
19.8-200 |
|
Direction of lay |
Free option to S / Z |
|||
|
bobbin size(mm) |
φ300 |
φ400& / φ500 |
φ500& /φ630 |
φ630& / φ800 |
|
max speed(RPM) |
3000(6000TPM) |
2200(4400TPM) |
1600(3200TPM) |
1200(2400TPM) |
|
power |
3.7KW |
5.5KW |
7.5KW |
11KW |
|
inverter |
3.7KW |
5.5KW |
7.5KW |
11KW |
|
tension control method |
mechanism friction |
|||
|
protection |
automatically brake when internal and external wire cutting off,or reach meters |
|||
|
brake mode |
electromagnetic brake |
|||
|
traverse |
Bearing type polish rod traverse ,traverse width and row space are adjustable |
|||
|
operation mode |
push button control |
|||
|
Dimension(mm) |
2300L*1000W*1150H |
2800L*1280W*1300H |
3280L*1600W*1600H |
3600L*1850W*1800H |
Trade terms: T/T,L/C
Package:
1) Simple water-prof package 2) Pallet package 3) Pallet with Vacuum package 4) Wooden box package
