Auto cable, electrical wire, power cords extrusion line
Professional Grade Auto Cable, Electrical Wire and Power Cords Extrusion Line with 2 Year Warranty!
The quality of our Auto Cable, Electrical Wire and Power Cords Extrusion Line is second to none.
Merits:
1. Auto Cable, Electrical Wire and Power Cords Extrusion Line apply for PVC, PP, PE, TPU and other plastic material insulate and jacket for the automobile wire,electrical wire,power cords and etc.Products are widely used in IT communications, aerospace, military,medical, locomotives, automobiles, robots, ships, 5G cloud databases and other fields.
2.Auto Cable, Electrical Wire and Power Cords Extrusion Line contains:barrel pay-off(or active pay-off),straightening unit,main extruder,injector,control power cabinet,tank,double wheel capstan,accumulator,dual take-ups and etc.
3.Optional: Auto Cable, Electrical Wire and Power Cords Extrusion Line can use preheater,printer,Diameter Gauge,spark tester and automatic PLC control system.

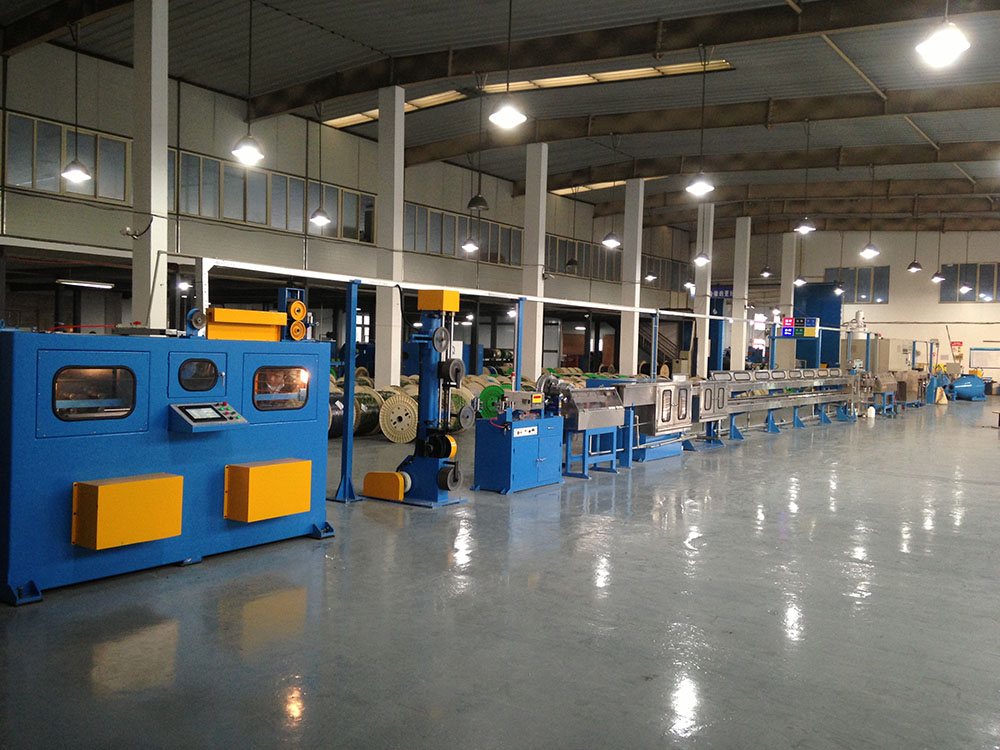

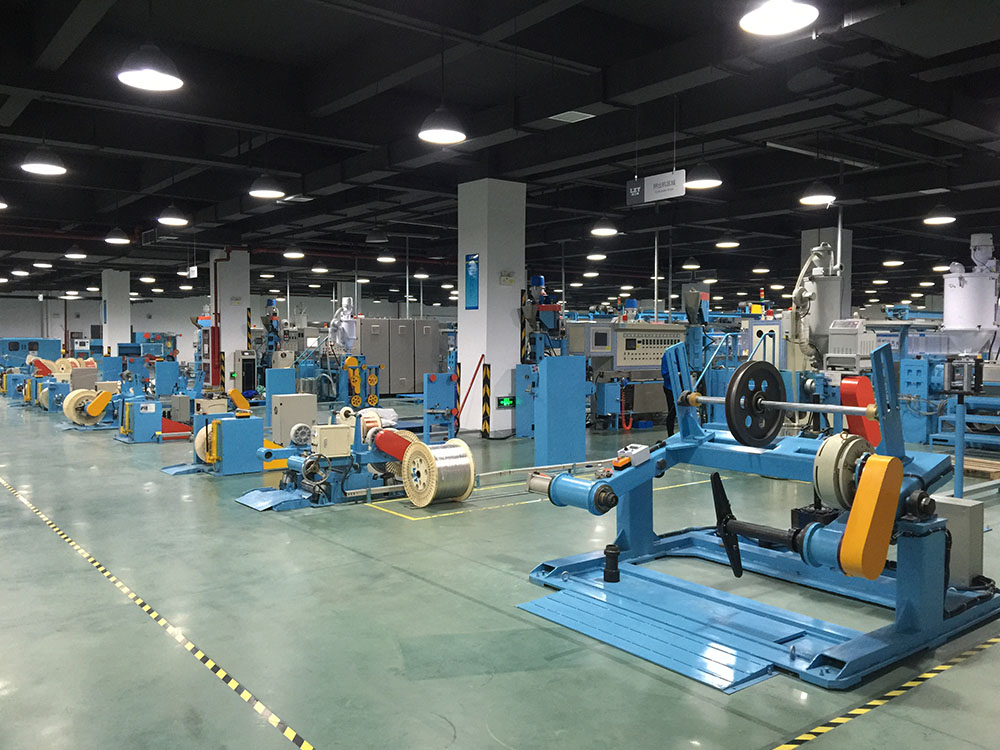

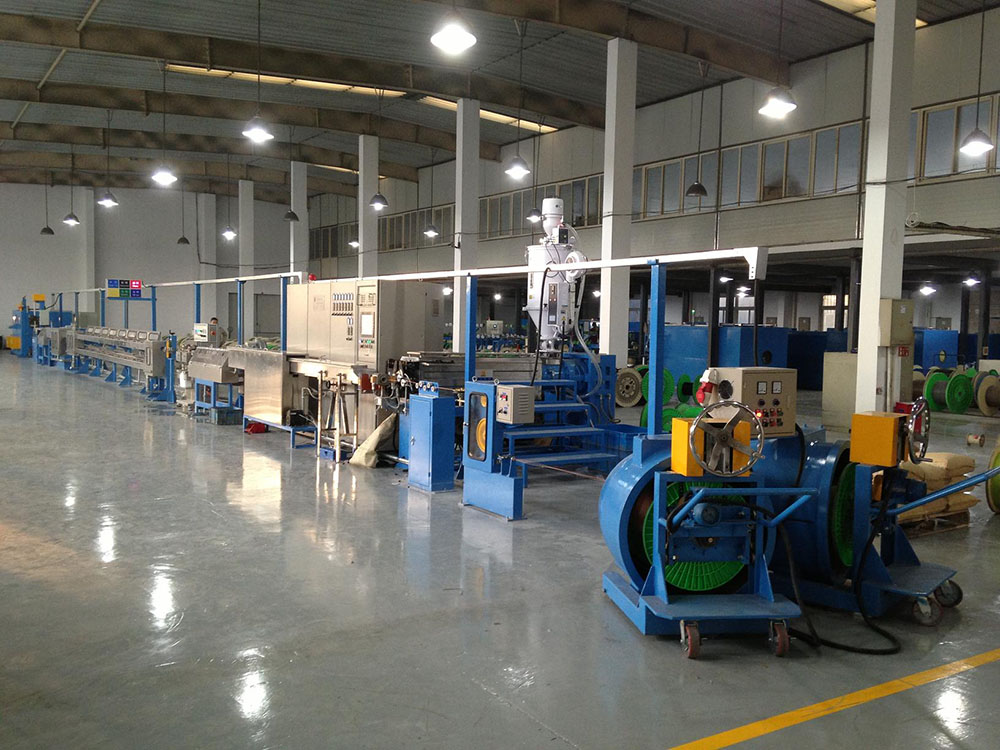

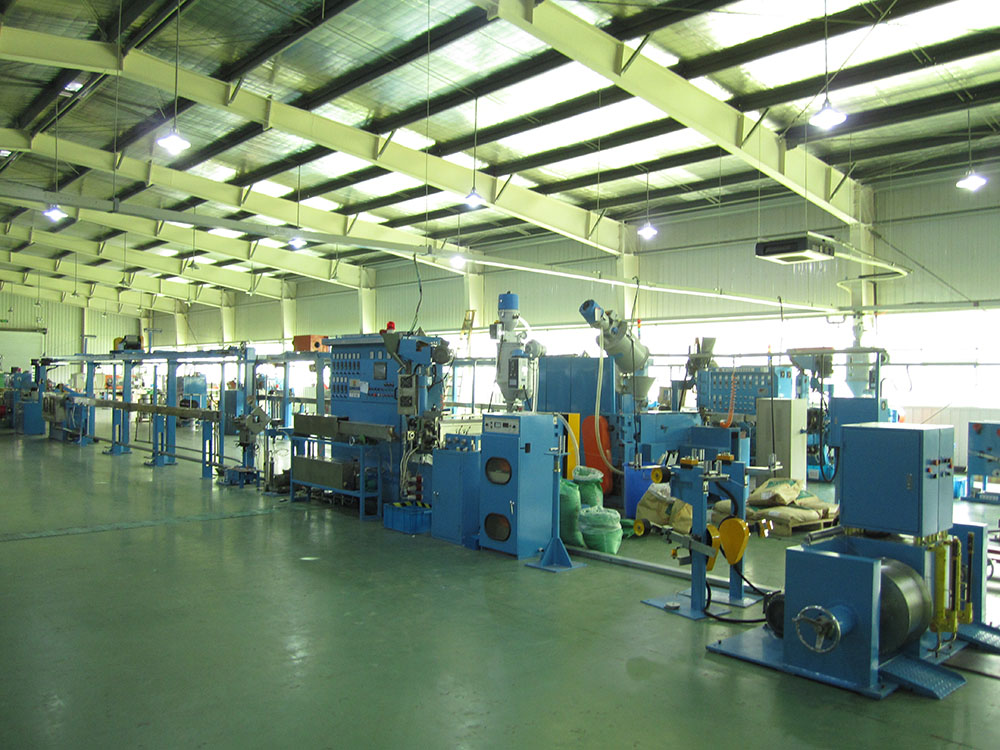

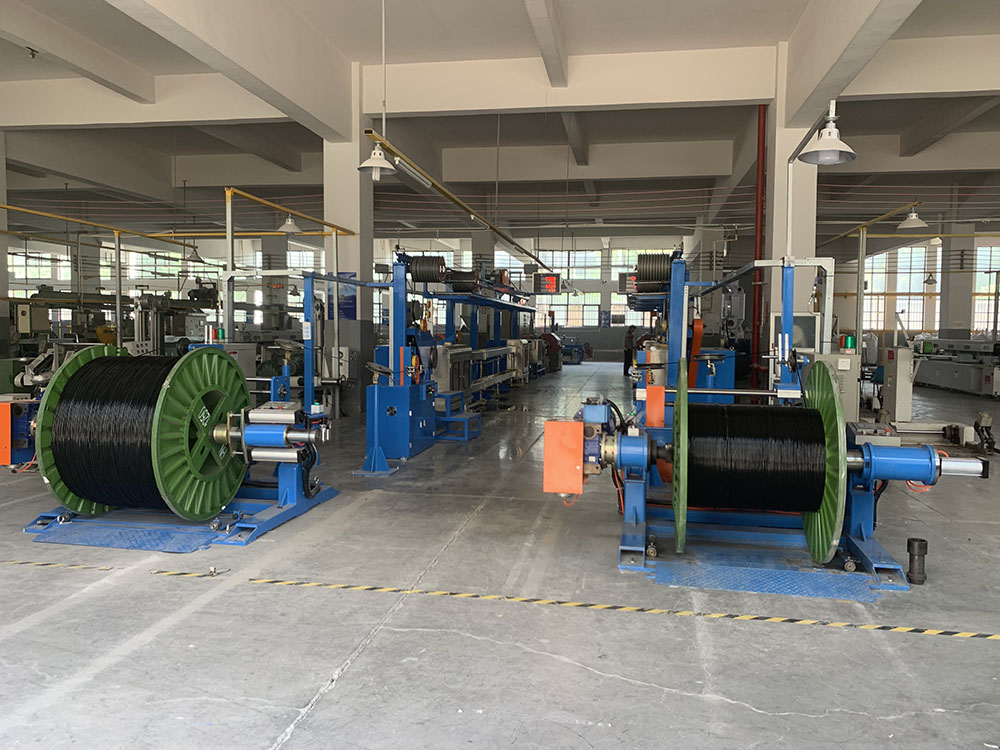

Some Cases:



Need help to provide an solution for conductor stranding and cores twisting?
Contact the Auto Cable, Electrical Wire and Power Cords Extrusion Line experts now! Tel: +86-15216844360 sales@cablemach.com
Can fit 380V to 440V,50HZ to 60HZ, color can be customize
3 phase 4 wires,R,S,T,PEN
3 phase 5 wires,R,S,T,PE,N
|
Model |
50+30 |
60+35 |
70+35 |
80+45 |
90+50 |
100 |
120 |
|
Pay-off |
500-630 active/barrel pay-off |
800-1250 active pay-off |
1250-2500 pay-off |
||||
|
Screw dia(m) |
50 |
60 |
70 |
80 |
90 |
100 |
120 |
|
L/D ratio |
26:1 |
26:1 |
26:1 |
25:1 |
25:1 |
25:1 |
25:1 |
|
Glue output(kg/h) |
60 |
90 |
160 |
240 |
280 |
450 |
650 |
|
Main power(kw) |
15 |
22 |
37 |
45 |
55 |
75 |
132 |
|
Wire size(mm) |
Φ0.6-3.5 |
Φ0.8-4.0 |
Φ1.0-5.0 |
Φ1.5-8 |
Φ6.0-25 |
Φ6.0-35 |
Φ20.0-80 |
|
Cooling device |
Double layer U type |
Single layer U type |
|||||
|
Max accumulator length(m) |
300 |
300 |
300 |
300 |
- |
||
|
Hauling power(kw) |
3.7 |
3.7 |
5.5 |
5.5 |
7.5 |
7.5 |
15 |
|
Max Liner speed(m/min) |
500 |
800 |
800 |
1000 |
200 |
200 |
80 |
|
Take-up |
1246 automatic coiler,500-800 drum take-up,Cone disc precision take-up, φ630 semi-auto dual shaftless take-ups |
800-1250 Take-up |
1250-2500 Take-up |
||||
Trade terms: T/T,L/C
Package:
1.Simple water-prof package 2.Pallet package 3.Pallet with Vacuum package 4.Wooden box package
