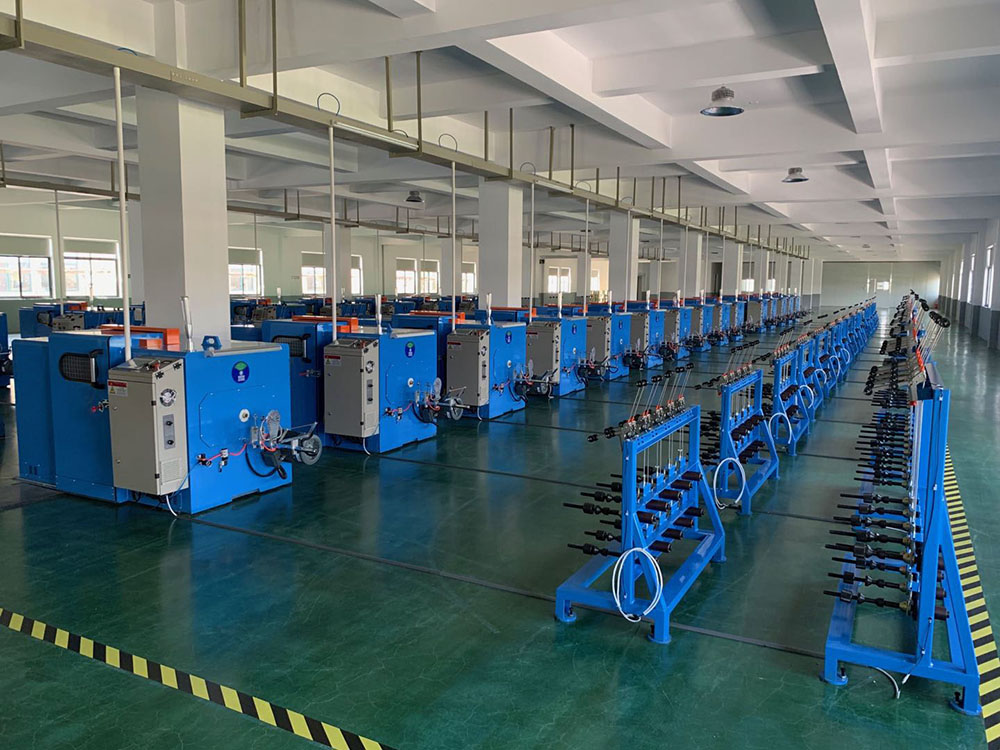

Type B Fine Wire Double Twist Bunching Machine
Professional Grade Type B Fine Wire Double Twist Bunching Machine with 2 Year Warranty!
The quality of our Type B Fine Wire Double Twist Bunching Machine is second to none.Can do conductor stranding from 0.0040mm2 to 1.0mm2 .products are widely used in IT communications, aerospace, military, medical, locomotives, automobiles, robots, ships, 5G cloud databases and other fields.
Type B Fine Wire Double Twist Bunching Machine apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Merits:
1. Type B Fine Wire Double Twist Bunching Machine is High speed, constant tension from empty reel to full reel, excellent quality of stranded wire, which can be used for stranding instead of stranding to meet customer's requirements for stranding of small cross-sectional area. The whole machine is driven by a synchronous belt, and only the take-up wheel needs to be replaced when changing the lay length ,easy to use
2. IoT (optional): Type B Fine Wire Double Twist Bunching Machine information of multiple devices can be integrated on multiple mobile phones or computers, and the operation of the machine can be checked at any time, such as speed, stranding specifications, line speed, output, equipment maintenance, etc., and can be online at the same time Diagnosis and remote maintenance, etc., to achieve refined management and reduce production and maintenance costs.
3.Range:
1. 250B Double Twist Bunching Machine for0.049mm2-0.3mm2
2. 300B Double Twist Bunching Machine for0.0088mm2-0.45mm2
3. 400B 450B Double Twist Bunching Machine for0.0137mm2-1.0mm2
This Type B Fine Wire Double Twist Bunching Machine is CE approved!
Need help to provide an solution for conductor stranding and cores twisting?
Contact the Type B Fine Wire Double Twist Bunching Machine experts now! Tel: +86-1521684436 sales@cablemach.com
4.Can fit 380V to 440V,50HZ to 60HZ, color can be customize
3 phase 4 wires,R,S,T,PEN
3 phase 5 wires,R,S,T,PE,N
|
Model |
||||
|
Usage |
Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires). |
|||
|
Single wire dia(mm) |
Φ0.03?0.18 |
Φ0.04?0.28 |
Φ0.05?0.32 |
Φ0.05?0.32 |
|
Cross section(mm²) |
0.0049?0.3 |
0.0088?0.45 |
0.0137?1.0 |
0.0137?1.0 |
|
Pitch(mm) |
0.8?10.8 |
1.6?21.6 |
3.1?33.3 |
3.1?33.3 |
|
Direction of Lay |
Free option to S Z |
|||
|
Take-up size(mm) |
Φ200?Φ250 |
Φ250?Φ300 |
Φ300?Φ400 |
Φ300?Φ450 |
|
Max speed (rpm) |
4000 (8000TPM) |
3500 (7000TPM) |
3000 (6000TPM) |
3000 (6000TPM) |
|
Power |
3.7KW |
3.7KW |
3.7KW |
3.7KW |
|
Tension Control |
Touch screen+ PLC+ magnetic powder clutch, ensure reel constant tension from empty to full |
|||
|
Magnetic Powder Clutch |
0.3kgf |
0.6kgf |
0.6kgf |
0.6kgf |
|
Protection |
Internal and external wire cut off automatic brake (electromagnetic brake), automatic shutdown when the meter reaches |
|||
|
Traversing Method |
Rolling wire with ring drive units, winding pitch and breadth are adjustable |
|||
|
Dimension |
2300L×1100W×1330H |
2300L×1100W×1330H |
2850L×1150W×1350H |
2850L×1150W×1350H |
5.Some options:
Set-up:
China standard: Veinview HMI + Inovance PLC & Invertor + Siemens Motor
Siemens standard: Siemens HMI & PLC & Invertor+Siemens Motor
Spindle lubrication:manual lubrication / PLC lubricator
Power Cabinet: Embedded type / plug in type / Stand alone type / Synoptic panel type

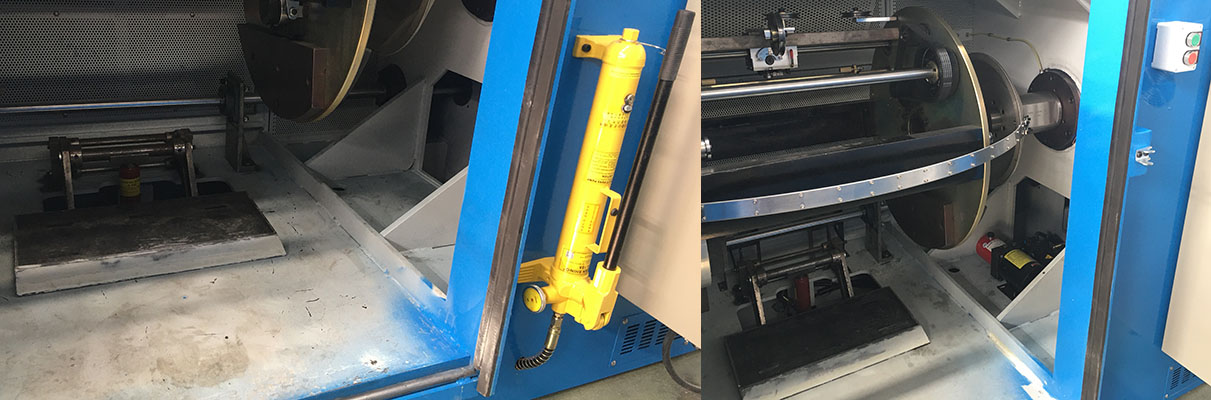

Spool Lift: manual hydraulic pump / electrical hydraulic pump
Take-up tension type:Magnetic powder clutch / Hollow shaft clutch
IOT remote system and temperature sensor
Trade terms: T/T,L/C
Package:
1) Simple water-prof package 2) Pallet package 3) Pallet with Vacuum package 4) Wooden box package
