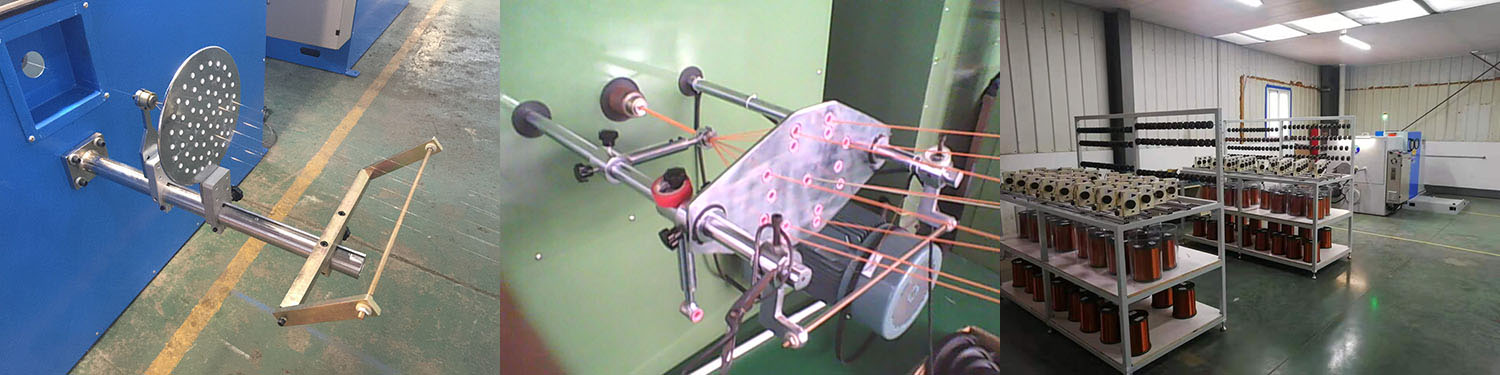

Type B Normal-Wire Bunching Machine
Professional Grade Type B Normal-Wire Double-Twist Bunching Machine with 2 Year Warranty!
The quality of our Type B Normal-Wire Double-Twist Bunching Machine is second to none.Can do conductor stranding from 0.05mm2 to 16.0mm2 .products are widely used in IT communications,aeroapace, military, medical, locomotives, automobiles, robots, ship, 5G could databases and other fields.
Type B Normal-Wire Double-Twist Bunching Machine apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires.
Merits：
1. Type B Normal-Wire Double-Twist Bunching Machine is High speed, constant tension from empty reel to full reel, excellent quality of stranded wire, which can be used for stranding instead of stranding to meet customer's requirements for stranding of small cross-sectional area. The whole machine is driven by a synchronous belt, and only the take-up wheel needs to be replaced when changing the lay length ,easy to use.
2. IoT (optional): Type B Normal-Wire Double-Twist Bunching Machine information of multiple devices can be integrated on multiple mobile phones or computers, and the operation of the machine can be checked at any time, such as speed, stranding specifications, line speed, output, equipment maintenance, etc., and can be online at the same time Diagnosis and remote maintenance, etc., to achieve refined management and reduce production and maintenance costs.
3. Range:
500B Double-Twist Bunching Machine for 0.05mm2 -2.5mm2
650B Double-Twist Bunching Machine for 0.35mm2-6.0mm2
650B Update Double-Twist Bunching Machine for 1.0mm2-16.0mm2
800B Double-Twist Bunching Machine for 1.0mm2-16.0mm2
This Type B Normal-Wire Double-Twist Bunching Machine is CE approved
Need help to provide an solution for conductor stranding and cores twisting?
Contact the Type B Normal-Wire Double-Twist Bunching Machine experts now! Tel: +86-15216844360 sunny@shec168.com
Can fit 380V to 440V,50HZ to 60HZ, color can be customize
3 phase 4 wires,R,S,T,PEN
3 phase 5 wires,R,S,T,PE,N
|
Model |
500B |
650B |
650B Update |
800B |
|
Usage |
Apply for the twisting of above 7pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. |
|||
|
Single Wire Dia(mm) |
Φ0.08～0.45 |
Φ0.15～1.04 |
Φ0.38～1.7 |
Φ0.38～1.7 |
|
Cross Section(mm²) |
0.05～2.5 |
0.35～6.0 |
1.0～16 |
1.0～16 |
|
Core wire dia(mm) |
Φ0.5～1.5 |
Φ0.8～3.0 |
Φ1.5～4.0 |
Φ1.5～4.0 |
|
Twisted outer dia(mm) |
Φ1.0～3.0 |
Φ1.6～6.0 |
Φ3.0～8.0 |
Φ3.0～8.0 |
|
Pitch(mm) |
6.3～52.3 |
11.6～100 |
20～160 |
23～160 |
|
Direction of Lay |
Free option to S Z |
|||
|
Take-up Size(mm) |
Φ400～Φ500 |
Φ500～Φ630 |
Φ500～Φ630 |
Φ630～Φ800 |
|
Max Speed (RPM) |
3000 (6000TPM) |
2000 (4000TPM) |
1600 (3200TPM) |
1600 (3200TPM) |
|
Power |
5.5KW |
7.5KW |
15KW |
15KW |
|
Tension control method |
Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin |
|||
|
Magnetic powder clutch |
1.2kgf |
5kgf |
10kgf |
10kgf |
|
Protection |
Internal and external wire cut off automatic brake (electromagnetic brake), automatic shutdown when the meter reaches |
|||
|
Traversing method |
Precious traverse or screw type polish wire traverse, winding pitch and breadth are adjustable |
|||
|
Dimension(mm) |
2680L×1250W×1500H |
3300L×1550W×1800H |
3400L×1600W×1800H |
4600L×2000W×2000H |
Some options：
1) Set-up:
China standard: Veinview HMI + Inovance PLC & Invertor + Siemens Motor
Siemens standard: Siemens HMI & PLC & Invertor+Siemens Motor

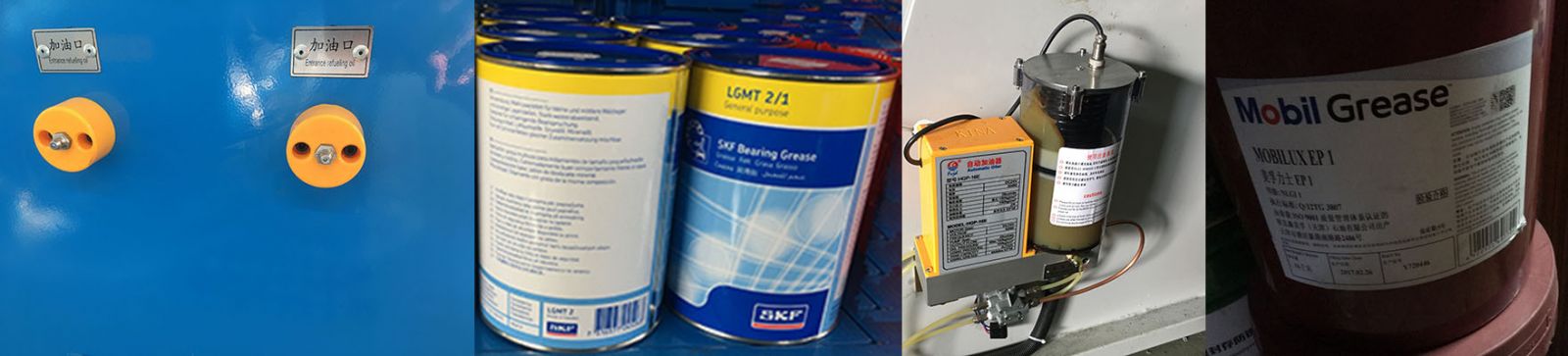

2) Spindle lubrication：manual lubrication / PLC lubricator

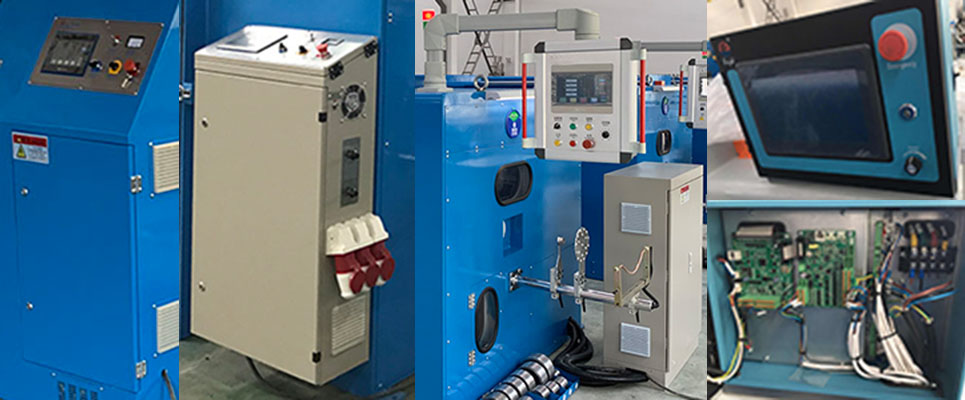

3) Power Cabinet: Embedded type / plug in type / Stand alone type / Synoptic panel type
4) Spool Lift: manual hydraulic pump / electrical hydraulic pump / Electrical screw rod
5) Take-up tension type: Magnetic powder clutch / Hollow shaft clutch / Hysteresis clutch

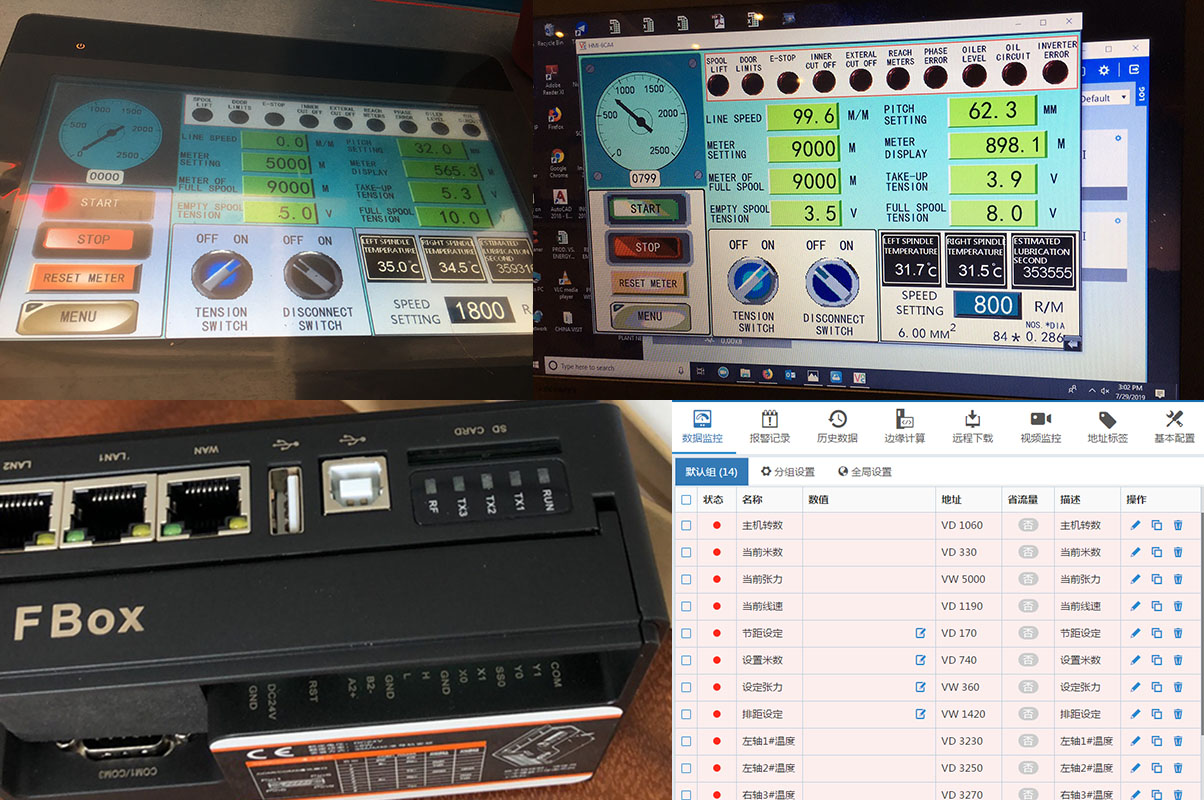

6) IOT remote system and temperature sensor
Trade terms: T/T,L/C
Package:
1) Simple water-prof package 2) Pallet package 3) Pallet with Vacuum package 4) Wooden box package
